NetSuite

21min

With NetSuite modules in Make, you can watch, search, create or update, retrieve, and delete standard and custom records.
To use the NetSuite app in Make, you must have the Make Enterprise plan. All Enterprise apps are currently labeled as premium tier 3 in Make.
To use the NetSuite modules, you must have a NetSuite account. You can create an account at NetSuite.com. The account must have admin or system administration permissions..
The following steps are required before creating the connection in Make:
﻿Enable token-based authentication﻿.
﻿Obtain your Consumer Key and Consumer Secret values﻿.
﻿Create and assign roles﻿.
Connect NetSuite to Make
To establish the connection, you must:
﻿Enable token-based authentication.﻿﻿
﻿Create Consumer Key and Consumer Secret credentials.﻿﻿
﻿Create and assign roles.﻿﻿
﻿Establish the connection in Make.﻿﻿
Enable token-based authentication
To enable token-based authentication and SOAP/REST webservice:
Log in to your NetSuite account as an admin.
Click Setup > Company > Enable Features.
Click SuiteCloud and select the following options:
SuiteScript - CLIENT SUITESCRIPT; SERVER SUITESCRIPT
SuiteTalk (Web Services)
SOAP WEB SERVICES
REST WEB SERVICES
Manage Authentication - SUITESIGNON; TOKEN-BASED AUTHENTICATION
Click Save.
Create Consumer Key and Consumer Secret Credentials
You must create a new integration in NetSuite to generate a consumer key and consumer secret values.

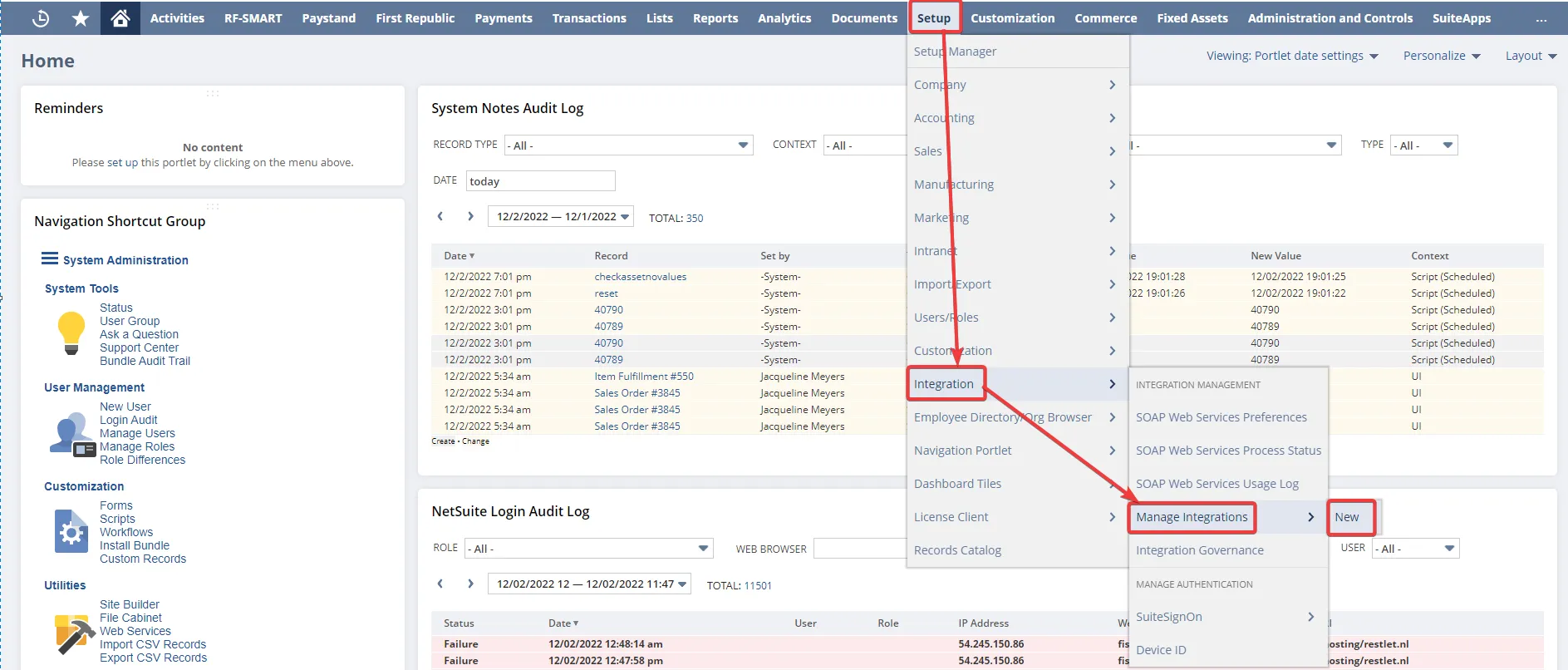

Navigate to Setup > Integration > Manage Integrations > New.
﻿
Enter a Name for the integration, select Enabled in the State field, select Token-based Authentication and TBA: authorization flow, and paste the following in the Callback URL field https://www.integromat.com/oauth/cb/netsuite.
Click Save.

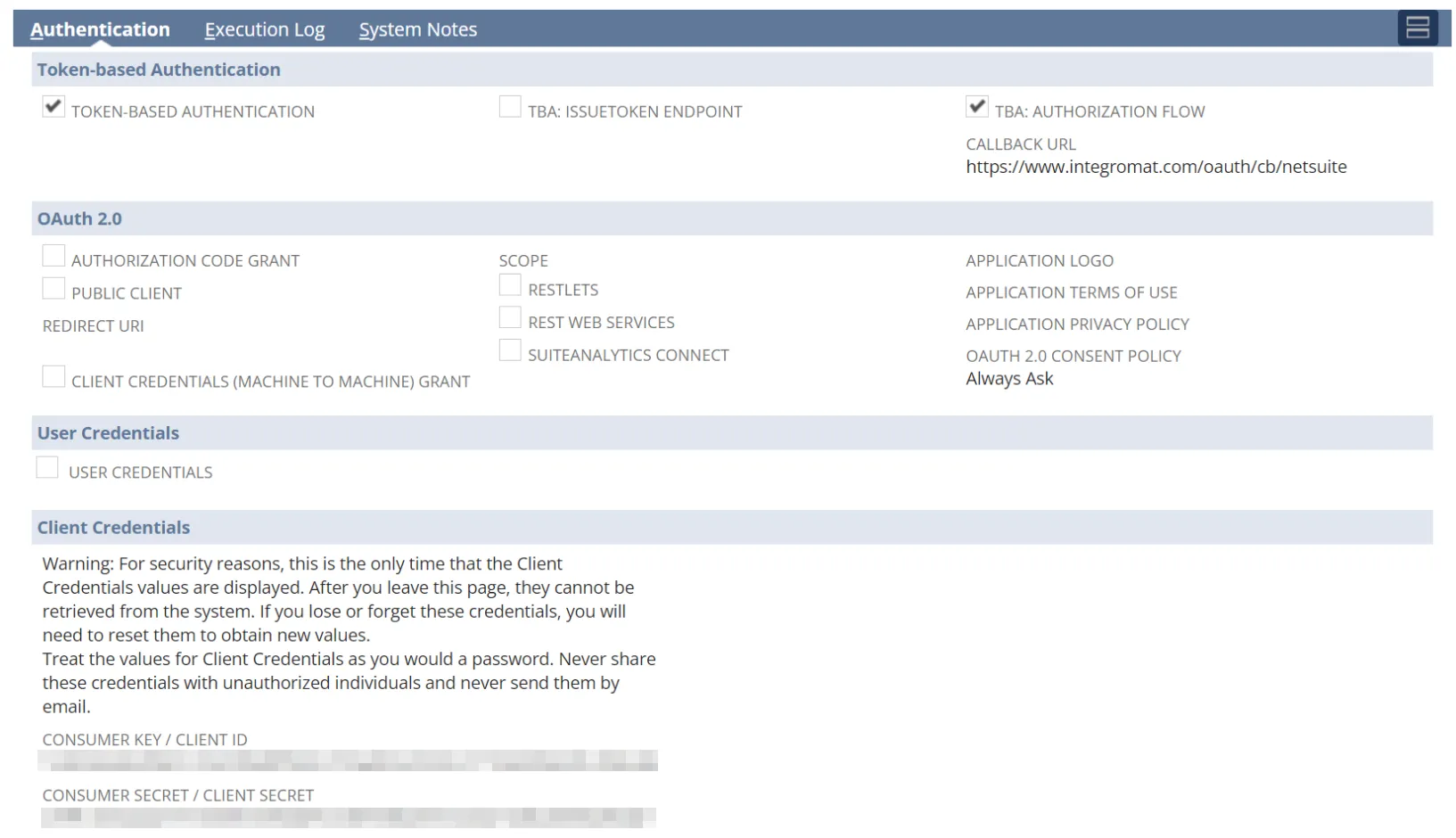

Copy the Consumer Key and Consumer Secret and save them in a safe place.
﻿
You now have the consumer credentials to connect to Make.
Create and Assign Roles
An admin must create roles and assign them to the users or employees to access the integration details.

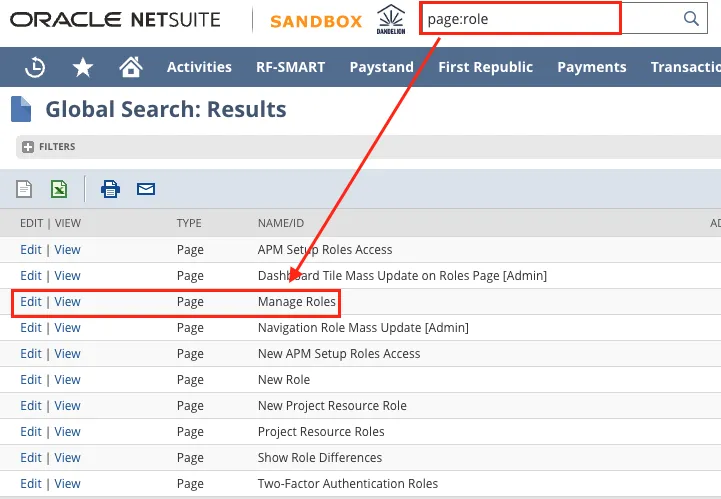

To access the roles page, search for Page:roles.

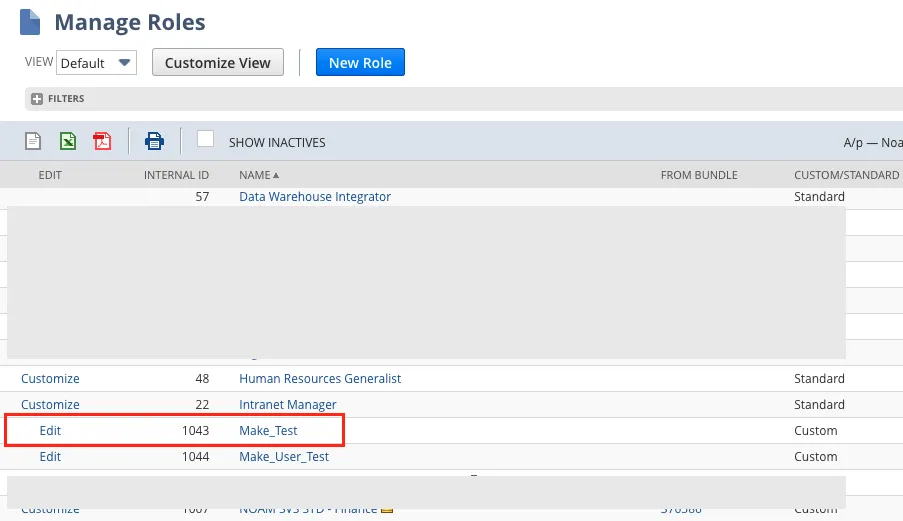

Click Edit next to Manage Roles.
﻿
Click New Role.
Enter the details as provided in the table and click Save. This creates a new role.
Name - Enter a name for the role.
Subsidiary Restrictions - Select All.
Permissions
In the Setup tab, add the following mandatory permissions:
Custom Body Fields - full access
Custom Entity Fields - full access
Custom Fields - full access
Custom Item Fields - full access
Custom Lists - full access
Custom Record Types - full access
Custom Segment - full access
Note: Before granting access to Custom Segments, enable the feature. To do it, go to Settings > Company > Enable Features. On the SuiteCloud subtab, select Custom Segments, and then click Save.
Log in using Access Tokens - full access
Records Catalog - view access
REST Web Services - full access
Set Up Company - view access
SOAP Web Services - full access
User Access Tokens - full access
In the Lists tab, add the following mandatory permissions:
Custom Record Entries - full access
Item Collection - full access
Items - full access
In the Reports tab, add the following mandatory permissions:
SuiteAnalytics Workbook - edit access
In the Transactions tab, add the following mandatory permissions:
Find Transactions - full access
Other required permissions for your desired transaction type.
Search for Page:Employees to assign the role to a user.
﻿
To assign the role to existing employees: Click Edit next to Employees and select the employee to assign the role to.
To assign the role to a new employee: Click Edit next to New Employees to create a new employee. Add the employee details.

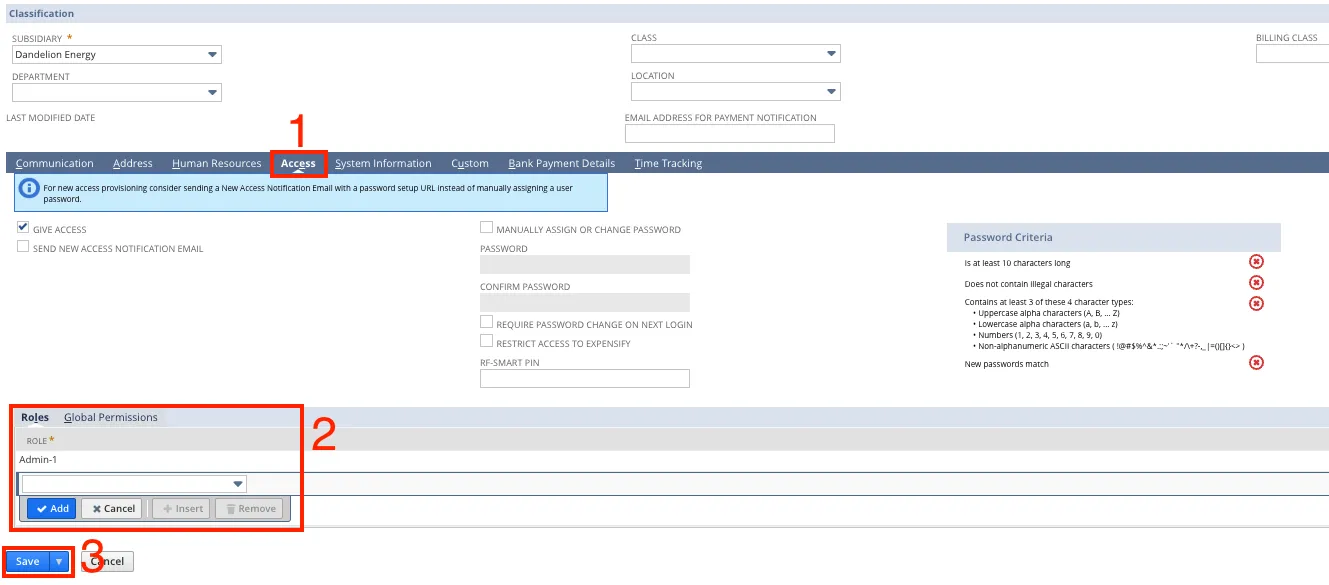

Click Access > Roles, add the new role you have created, and click Save.
﻿
You have successfully created and assigned the roles to access the integration details.
Establish the connection with NetSuite in Make
All users can create a connection, while only admin can obtain the Consumer Key and Secret values and assign roles.
Log in to your Make account, add a NetSuite module to your , and click Create a connection.
Optional: In the Connection name field, enter a name for the connection.
In the Consumer Key and Consumer Secret fields, enter the credentials that you generated in NetSuite.
Click Save.
If prompted, authenticate your account and confirm access.
You have successfully established the connection. You can now edit your  and add more NetSuite modules. If your connection requires reauthorization at any point, follow the connection renewal steps here﻿.
Connections between NetSuite and Make use token-based authentication with tokens that do not expire.
NetSuite Production connections: If your connection breaks or expires, check your NetSuite account to ensure your token has not been revoked. For more information, you can check the Integration Record in NetSuite by navigating to Setup > Integrations > Manage Integrations or the Login Audit Trail by navigating to Setup > Users/Roles > View Login Audit Trail.
NetSuite Sandbox connections: NetSuite will regularly rollback sandbox environments to their original state. When this happens, your connection in Make may be broken.
Make does not refresh the connection with NetSuite. Make sure, your token and secret are valid. If the token and secret are not valid, check if NetSuite Web UI revoked the token.
If you use NetSuite Sandbox, keep in mind, that the Sandbox may be rolled back to its original state. It breaks the connection. Learn more about checking if the token is valid.
Standard Record
You can watch, search, create or update, retrieve, and delete records using the following modules.

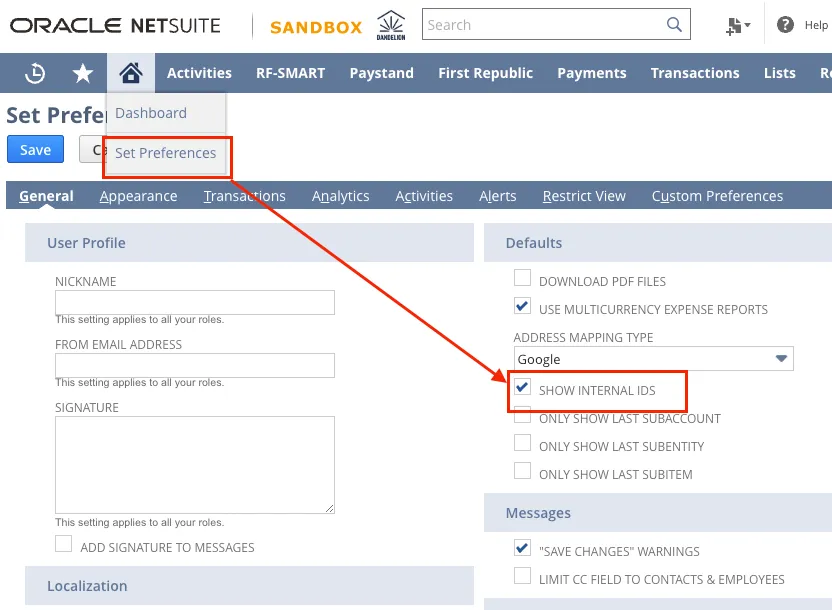

Some entity fields describing a record type are displayed with their internal API names instead of their NetSuite labels. For example, in Account record types where the entity field is called Parent, the internal ID label refers to Subaccount of. For more information, refer to NetSuite SOAP API documentation.
Trigger when a record is created or updated.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Search Record Type
Select or map the record type of the records you want to watch.
Trigger by
Select the type of field you want the module to be triggered by.
Record Field
Select the exact date field to be triggered by.
Custom Field
Select the exact date custom field to be triggered by.
Entity Custom Fields
Select the custom fields to be listed for mapping. If you want to list all the fields then you can leave this empty.
Limit
Set the maximum number of records Make will return during one execution cycle. The default value is 2.
﻿
Triggers when a record in a saved search is created.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Search Record Type
Select or map the record type of the records you want to watch.
Saved Search
Select the saved search that must include Internal ID.
Trigger by
Select the type of field you want the module to be triggered by.
Record Field
Select the date field to trigger the search for newly created records.
Custom Field
Select the date type custom field to be triggered by.
Search Filter
Specify the filter conditions and operators. To search for sales transaction types, see the information below this table regarding how to set up the Search Filter.
Enable Custom Field Filter
Select whether to enable the custom field filter for additional filtering options.
Custom Field Filter
Specify the custom fields to add additional filters to trigger your search for newly created records.
Limit
Set the maximum number of records Make will return during one execution cycle. The default value is 2.
To search for sales transaction types (such as invoices, deposits, etc.), you must use a search filter for the transaction type's Enum value.\
Follow these steps to create the filter:
In Search Record Type, select Transaction Search.
Under Search Filter, select Type [Enum].
Select the Enum (separated by,) operator.
In the field below, enter the Enum value from the table below, depending on the transaction type.
Transaction type
Enum value
Assembly Build
_assemblyBuild
Assembly Unbuild
_assemblyUnbuild
Bin Transfer
_binTransfer
Bin Worksheet
_binWorksheet
Cash Refund
_cashRefund
Cash Sale
_cashSale
Check
_check
Credit Memo
_creditMemo
Custom Purchase
_customPurchase
Custom Sale
_customSale
Customer Deposit
_customerDeposit
Customer Payment
_customerPayment
Customer Refund
_customerRefund
Deposit
_deposit
Deposit Application
_depositApplication
Estimate
_estimate
Expense Report
_expenseReport
Inventory Adjustment
_inventoryAdjustment
Inventory Cost Revaluation
_inventoryCostRevaluation
Inventory Transfer
_inventoryTransfer
Invoice
_invoice
Item Fulfillment
_itemFulfillment
Item Receipt
_itemReceipt
Journal Entry
_journal
Opportunity
_opportunity
Paycheck Journal
_paycheckJournal
Purchase Order
_purchaseOrder
Return Authorization
_returnAuthorization
Sales Order
_salesOrder
Transfer Order
_transferOrder
Vendor Bill
_vendorBill
Vendor Credit
_vendorCredit
Vendor Payment
_vendorPayment
Vendor Return Authorization
_vendorReturnAuthorization
Work Order
_workOrder
Work Order Close
_workOrderClose
Work Order Completion
_workOrderCompletion
Work Order Issue
_workOrderIssue
﻿

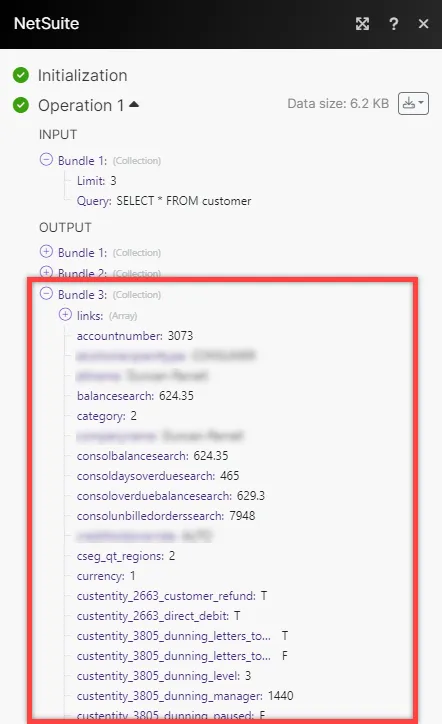

Retrieves a list of records filtered by a query.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Search Record Type
Select the record type and add filters to search the record.
Search Filter
Specify the filter conditions and operators. To search for sales transaction types, see the information below this table regarding how to set up the Search Filter.
Limit
Set the maximum number of records Make will return during one execution cycle. The default value is 10.
Entity Custom Fields
Select the fields to be listed for mapping or leave the field blank to list records for all the available entity custom fields.
To search for sales transaction types (such as invoices, deposits, etc.), you must use a search filter for the transaction type's Enum value.
Follow these steps to create the filter:
In Search Record Type, select Transaction Search.
Under Search Filter, select Type [Enum].
Select the Enum (separated by,) operator.
In the field below, enter the Enum value from the table below, depending on the transaction type.
Transaction type
Enum value
Assembly Build
_assemblyBuild
Assembly Unbuild
_assemblyUnbuild
Bin Transfer
_binTransfer
Bin Worksheet
_binWorksheet
Cash Refund
_cashRefund
Cash Sale
_cashSale
Check
_check
Credit Memo
_creditMemo
Custom Purchase
_customPurchase
Custom Sale
_customSale
Customer Deposit
_customerDeposit
Customer Payment
_customerPayment
Customer Refund
_customerRefund
Deposit
_deposit
Deposit Application
_depositApplication
Estimate
_estimate
Expense Report
_expenseReport
Inventory Adjustment
_inventoryAdjustment
Inventory Cost Revaluation
_inventoryCostRevaluation
Inventory Transfer
_inventoryTransfer
Invoice
_invoice
Item Fulfillment
_itemFulfillment
Item Receipt
_itemReceipt
Journal Entry
_journal
Opportunity
_opportunity
Paycheck Journal
_paycheckJournal
Purchase Order
_purchaseOrder
Return Authorization
_returnAuthorization
Sales Order
_salesOrder
Transfer Order
_transferOrder
Vendor Bill
_vendorBill
Vendor Credit
_vendorCredit
Vendor Payment
_vendorPayment
Vendor Return Authorization
_vendorReturnAuthorization
Work Order
_workOrder
Work Order Close
_workOrderClose
Work Order Completion
_workOrderCompletion
Work Order Issue
_workOrderIssue
Retrieves a list of records filtered by a saved search.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Search Record Type
Select the record type and add filters to search the record.
Saved Search
Select the saved search that you want to use for filtering records.
Search Filter
Specify the filter conditions and operators. To search for sales transaction types, see the information below this table regarding how to set up the Search Filter.
Enable Custom Field Filter
Select whether to enable the custom field filter for additional filtering options.
Limit
Set the maximum number of records Make will return during one execution cycle. The default value is 10.
To search for sales transaction types (such as invoices, deposits, etc.), you must use a search filter for the transaction type's Enum value.
Follow these steps to create the filter:
Transaction type
Enum value
Assembly Build
_assemblyBuild
Assembly Unbuild
_assemblyUnbuild
Bin Transfer
_binTransfer
Bin Worksheet
_binWorksheet
Cash Refund
_cashRefund
Cash Sale
_cashSale
Check
_check
Credit Memo
_creditMemo
Custom Purchase
_customPurchase
Custom Sale
_customSale
Customer Deposit
_customerDeposit
Customer Payment
_customerPayment
Customer Refund
_customerRefund
Deposit
_deposit
Deposit Application
_depositApplication
Estimate
_estimate
Expense Report
_expenseReport
Inventory Adjustment
_inventoryAdjustment
Inventory Cost Revaluation
_inventoryCostRevaluation
Inventory Transfer
_inventoryTransfer
Invoice
_invoice
Item Fulfillment
_itemFulfillment
Item Receipt
_itemReceipt
Journal Entry
_journal
Opportunity
_opportunity
Paycheck Journal
_paycheckJournal
Purchase Order
_purchaseOrder
Return Authorization
_returnAuthorization
Sales Order
_salesOrder
Transfer Order
_transferOrder
Vendor Bill
_vendorBill
Vendor Credit
_vendorCredit
Vendor Payment
_vendorPayment
Vendor Return Authorization
_vendorReturnAuthorization
Work Order
_workOrder
Work Order Close
_workOrderClose
Work Order Completion
_workOrderCompletion
Work Order Issue
_workOrderIssue
﻿
Creates or updates an existing record by its ID.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Action
Select the action you want to perform. For example, create a record and get an internal ID.
Record Type
Select the record type and enter the details of the record you want to create.
Entity Custom Fields
Select the custom fields you want to add to this record. Once you select the custom field, an option to enter or map a value will be provided.
﻿
Retrieves the details of an existing record by its ID.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Record Type
Select or map the record type of the details you want to retrieve.
Internal ID
Enter the Internal ID of the record whose details you want to retrieve.

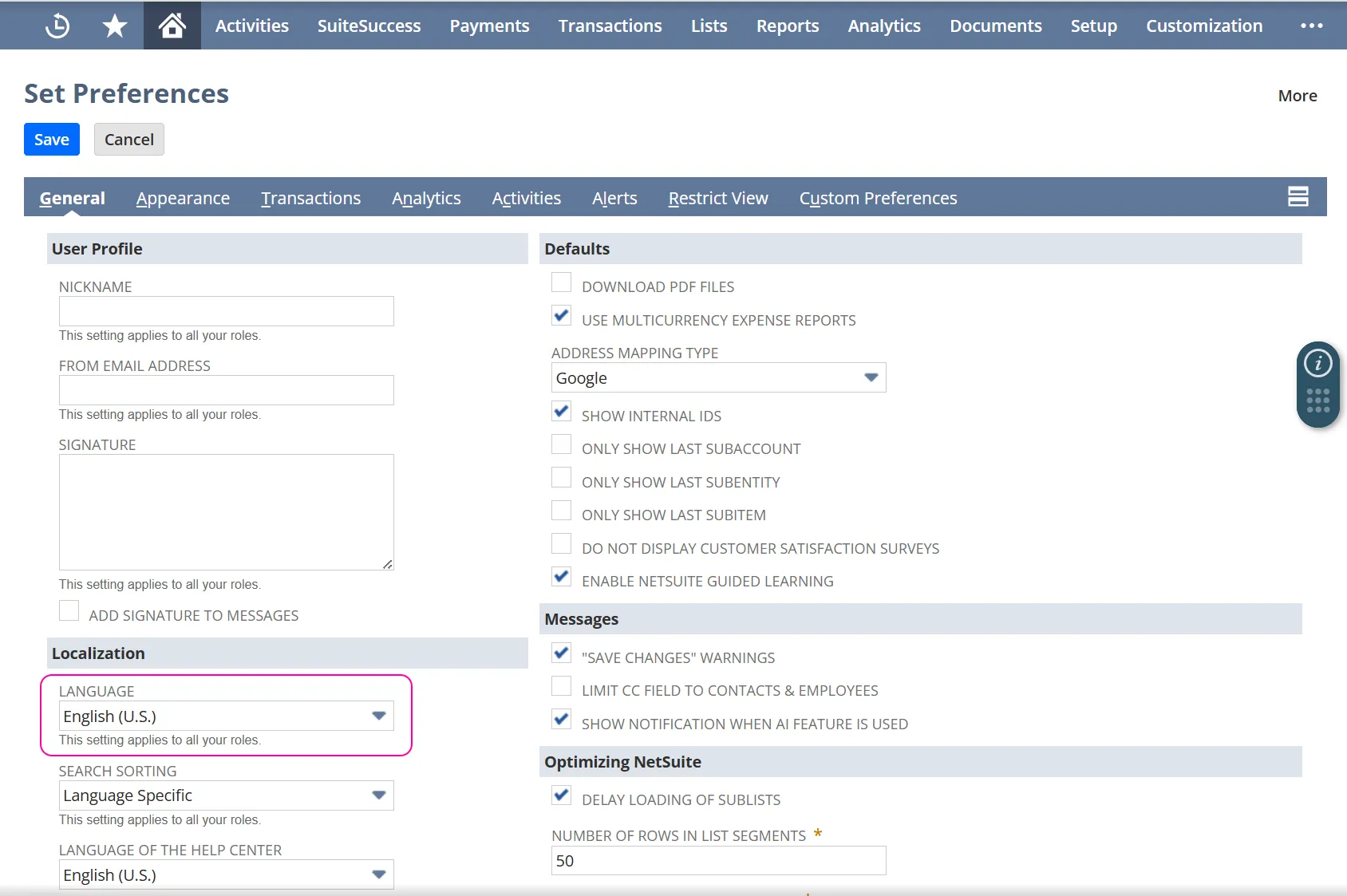

Ensure that in the Preference section, you have selected the Show Internal ID checkbox to display the Internal ID column in the records page.
﻿
External ID
Enter the External ID of the record whose details you want to retrieve.
Entity Custom Fields
Select the fields to be listed for mapping or leave this field blank to list all available entity custom fields.
﻿
Removes a record by its type and ID.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Record Type
Select or map the record type of the record you want to delete.
Internal ID
Enter the Internal ID of the record you want to delete.
Ensure that in the Preference section, you have selected the Show Internal ID checkbox to display the Internal ID column in the records page.
﻿
External ID
Enter the External ID of the record you want to delete.
Reason Code ID
Enter the Reason Code ID applicable to the record you want to delete. You can find the ID at NetSuite Setup > Accounting > Accounting Lists and filter by Transaction Deletion Reason to get the reason ID.
Reason Memo
Enter a memo with the reason to delete the record.
﻿
Custom Record
You can search, create, retrieve, update, and delete custom records using the following modules.
Retrieves a list of custom records filtered by a query.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Custom Record Type
Select the custom record type and add filters to search for the custom records.
Limit
Set the maximum number of records Make will work with during one execution cycle. It must be a number between 1 and 3200. The default value is 10.
Offset
Enter the number of results to be skipped, it must be divisible by the page limit 100. Use this field with a repeater module only if you want to get more than 3200 results.
Retrieves multiple custom records by their IDs.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Custom Record Type
Select the custom record type details you want to retrieve.
Record IDs
Enter the internal IDs of the custom records you want to retrieve.
Ensure that in the Preference section, you have selected the Show Internal ID checkbox to display the Internal ID column in the records page.
Creates a new custom record.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Custom Record Type
Select the custom record type and enter details for the record you want to create.
Retrieves the details of the custom record by its ID.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Custom Record Type
Select the custom record type of the details you want to retrieve.
ID
Enter either the internal or external ID of the custom record you want to retrieve details for. If using an external ID, add the prefix eid:. For example, eid:make-123.
To use internal IDs, ensure that in the Preference section you have selected the Show Internal ID checkbox to display the Internal ID column in the records page.
﻿
﻿
Updates a custom record by its ID.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Custom Record Type
Select the custom record type of the record you want to update and enter the details you want to update.
ID
Enter either the internal or external ID of the custom record you want to update. If using an external ID, add the prefix eid:. For example, eid:make-123.
To use internal IDs, ensure that in the Preference section you have selected the Show Internal ID checkbox to display the Internal ID column in the records page.
﻿
﻿
Deletes a custom record by its ID.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Custom Record Type
Select the custom record type of the record you want to delete.
ID
Enter either the internal or external ID of the custom record you want to delete. If using an external ID, add the prefix eid:. For example, eid:make-123.
To use internal IDs, ensure that in the Preference section you have selected the Show Internal ID checkbox to display the Internal ID column in the records page.
﻿
Files and Folders
You can upload, download, attach, detach files and create folders using the following modules.
Uploads a file by an external URL or binary data.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Upload By
Select or map the upload type:
URL
Binary Data
Folder
Either Interal ID or External ID must be provided. If both are provided, the Internal ID is used.
File Type
Select the type of file you want to upload.
Description
Enter a description for the file.
Is Online
Select if the file is accessible externally.
Is Private
Select if the file is visible only by you.
﻿
Download an existing file by its Internal ID or External ID.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Internal ID
Enter the Internal ID of the file you want to download.
External ID
Enter the External ID of the file you want to download.
﻿
Attaches a file to a record by its ID and the record ID.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
File
Either Internal ID or External ID must be provided. If both are provided, the Internal ID is used.
Record Type
Select the type of record to which you want to attach a file.
Internal ID
Enter the Internal ID of the file you want to attach.
External ID
Enter the External ID of the file you want to attach.
﻿
Detaches a file from a record by its ID and the record ID.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
File
Either Internal ID or External ID must be provided. If both are provided, the Internal ID is used.
Record Type
Select the type of record from which you want to detach a file.
Internal ID
Enter the Internal ID of the record you want to detach.
External ID
Enter the External ID of the record you want to detach.
﻿
Creates or updates a folder by its Internal ID or External ID.
﻿
﻿
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Action
Select the action you want to take:
Create a folder: Internal ID
Update a folder: Internal ID
Create or update a folder: External ID
Description
Enter a description for the folder.
Folder Type
Select the type of folder.
Parent
Provide the Internal ID or External ID of the parent folder. If both are provided, the Internal ID is used.
Is Online
Select if you want this folder accessible externally.
Is Private
Select if you want the folder to be visible only by you.
Is Inactive
Select if you want to inactivate this folder.
﻿
Other
Performs an arbitrary authorized API call.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Action
Select or map an action for the call. For example, Search.
Body
Enter the body content for your API call. For example, <platformMsgs:getAll><platformCore:record recordType="currency" /></platformMsgs:getAll>
Header
Enter the desired request headers. You don't have to add authorization headers; we've already added those for you.
SOAP Version
Enter a valid SOAP version to apply for the call. For example, NetSuitePort_2022_1.
Predefined namespaces for making a SOAP API request:
Namespace
Target
platformCore
/xsd/platform/v2022_1_0/core.xsd
platformCoreTyp
/xsd/platform/v2022_1_0/coreTypes.xsd
platformMsgs
/xsd/platform/v2022_1_0/messages.xsd
platformCommon
/xsd/platform/v2022_1_0/common.xsd
platformCommonTyp
/xsd/platform/v2022_1_0/commonTypes.xsd
actSched
/xsd/activities/v2022_1_0/scheduling.xsd
actSchedTyp
/xsd/activities/v2022_1_0/schedulingTypes.xsd
demandPlanning
/xsd/transactions/v2022_1_0/demandPlanning.xsd
demandPlanningTyp
/xsd/transactions/v2022_1_0/demandPlanningTypes.xsd
docfileCab
/xsd/documents/v2022_1_0/fileCabinet.xsd
docfileCabTyp
/xsd/documents/v2022_1_0/fileCabinetTypes.xsd
generalComm
/xsd/general/v2022_1_0/communication.xsd
generalCommTyp
/xsd/general/v2022_1_0/communicationTypes.xsd
listAcct
/xsd/lists/v2022_1_0/accounting.xsd
listAcctTyp
/xsd/lists/v2022_1_0/accountingTypes.xsd
listEmp
/xsd/lists/v2022_1_0/employees.xsd
listEmpTyp
/xsd/lists/v2022_1_0/employeeTypes.xsd
listMkt
/xsd/lists/v2022_1_0/marketing.xsd
listMktTyp
/xsd/lists/v2022_1_0/marketingTypes.xsd
listRel
/xsd/lists/v2022_1_0/relationships.xsd
listRelTyp
/xsd/lists/v2022_1_0/relationshipTypes.xsd
listScm
/xsd/lists/v2022_1_0/supplyChain.xsd
listScmTyp
/xsd/lists/v2022_1_0/supplyChainTypes.xsd
listSupport
/xsd/lists/v2022_1_0/support.xsd
listSupportTyp
/xsd/lists/v2022_1_0/supportTypes.xsd
listSite
/xsd/lists/v2022_1_0/website.xsd
listSiteTyp
/xsd/lists/v2022_1_0/websiteTypes.xsd
setupCustom
/xsd/setup/v2022_1_0/customization.xsd
setupCustomTyp
/xsd/setup/v2022_1_0/customizationTypes.xsd
tranBank
/xsd/transactions/v2022_1_0/bank.xsd
tranBankTyp
/xsd/transactions/v2022_1_0/bankTypes.xsd
tranCust
/xsd/transactions/v2022_1_0/customers.xsd
tranCustTyp
/xsd/transactions/v2022_1_0/customerTypes.xsd
tranInvt
/xsd/transactions/v2022_1_0/inventory.xsd
tranInvtTyp
/xsd/transactions/v2022_1_0/inventoryTypes.xsd
tranEmp
/xsd/transactions/v2022_1_0/employees.xsd
tranEmpTyp
/xsd/transactions/v2022_1_0/employeeTypes.xsd
tranFin
/xsd/transactions/v2022_1_0/financial.xsd
tranFinTyp
/xsd/transactions/v2022_1_0/financialTypes.xsd
tranGeneral
/xsd/transactions/v2022_1_0/general.xsd
tranPurch
/xsd/transactions/v2022_1_0/purchases.xsd
tranPurchTyp
/xsd/transactions/v2022_1_0/purchaseTypes.xsd
tranSales
/xsd/transactions/v2022_1_0/sales.xsd
tranSalesTyp
/xsd/transactions/v2022_1_0/saleTypes.xsd
Example of Use - Get Records from Saved Search on Custom Record
The following API call returns records from save search on custom record:
Action: Search
Body: <platformMsgs:search><platformMsgs:searchRecord xsi:type="setupCustom:CustomRecordSearchAdvanced" savedSearchId="1"/></platformMsgs:search>
The opening and closing tags should contain the action name. In the example, the action is Search. The tags contain platformMsgs:search.

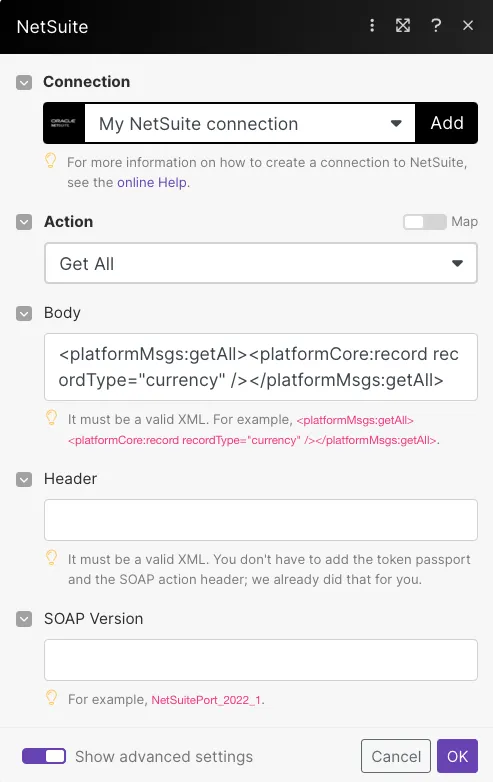

Example of Use - Get All Messages
The following API call returns all the messages from your NetSuite account:
Action: Get All
Body: <platformMsgs:getAll><platformCore:record recordType="currency" /></platformMsgs:getAll
﻿

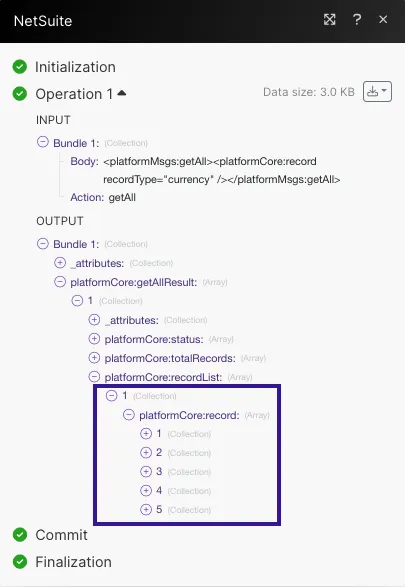

Matches of the search can be found in the module's Output under Bundle. In our example, 5 messages were returned:
﻿
Performs an arbitrary authorized REST API call.

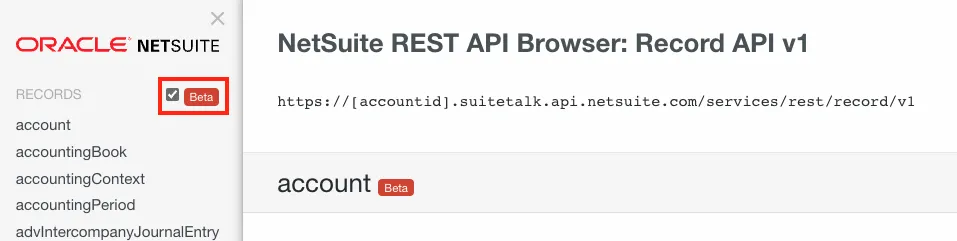

The Beta endpoints are available only if you are enrolled and have joined the Oracle NetSuite Beta programs.
﻿
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
URL
Enter a path relative to https://{accountId}.suitetalk.api.netsuite.com/services/rest. For example, /record/v1/customer.
Method
Select the HTTP method you want to use:
GET to retrieve information for an entry.
POST to create a new entry.
PUT to update/replace an existing entry.
PATCH to make a partial entry update.
DELETE to delete an entry.
OPTIONS to identify allowed request methods.
Headers
You don't have to add authorization headers and content type as they are already added for you.
Query String
Enter the request query string.
Body
Enter the body content for your API call. It must be a valid JSON string.
For more information, see the NetSuite REST API documentation.
Example of Use - Get All Customers
The following API call returns all customers from your NetSuite account:
URL: /record/v1/customer
Method: GET
﻿

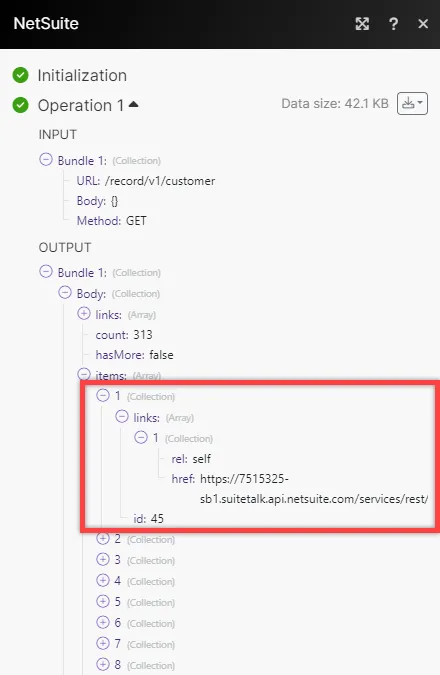

Search results can be found in the module's Output under Bundle. In our example, 313 customers were returned.
﻿
Performs an arbitrary authorized RESTlet API call.
Before using a module, upload your script file to your File Cabinet and create a script record and a script deployment record for it in your NetSuite account. Read more here.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Script ID
Enter the script record’s ID.
Deploy ID
Enter the deployment record’s ID
Method
Select the HTTP method you want to use:
GET to retrieve information for an entry.
POST to create a new entry.
PUT to update/replace an existing entry.
DELETE to delete an entry.
Header
You don't have to add authorization headers and content type as they are already added for you.
Query String
Enter the request query string.
Body
Enter the body content for your API call. It must be a valid JSON string.
﻿
﻿
Executes a SuiteQL query.
Connection
﻿Establish a connection to your NetSuite account.﻿﻿
Query
For more information on building a query, visit the NetSuite documentation.
Limit
The maximum number of results to be worked with during one execution cycle. The number must be between 1 and 3200.
Offset
The number of results to be skipped, it must be divisible by the page limit 100. Use this field with a repeater module only if you want to get more than 3200 results.

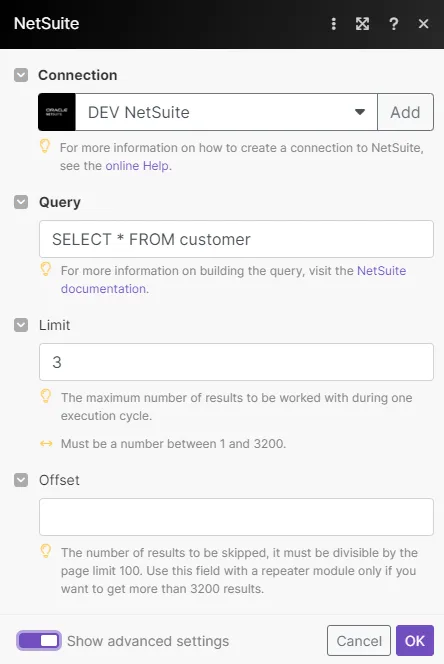

Example of Use - Customer Information
The following SuiteQL Query returns information for three customers from your NetSuite account.
Query: SELECT * FROM customer
Limit: 3
﻿
Results can be found in the module's Output under Bundle. In our example, 3 customers and their information were returned.
﻿
﻿

Connection	Establish a connection to your NetSuite account.
Search Record Type	Select or map the record type of the records you want to watch.
Trigger by	Select the type of field you want the module to be triggered by.
Record Field	Select the exact date field to be triggered by.
Custom Field	Select the exact date custom field to be triggered by.
Entity Custom Fields	Select the custom fields to be listed for mapping. If you want to list all the fields then you can leave this empty.
Limit	Set the maximum number of records Make will return during one execution cycle. The default value is 2.

Connection	Establish a connection to your NetSuite account.
Search Record Type	Select or map the record type of the records you want to watch.
Saved Search	Select the saved search that must include Internal ID.
Trigger by	Select the type of field you want the module to be triggered by.
Record Field	Select the date field to trigger the search for newly created records.
Custom Field	Select the date type custom field to be triggered by.
Search Filter	Specify the filter conditions and operators. To search for sales transaction types, see the information below this table regarding how to set up the Search Filter.
Enable Custom Field Filter	Select whether to enable the custom field filter for additional filtering options.
Custom Field Filter	Specify the custom fields to add additional filters to trigger your search for newly created records.
Limit	Set the maximum number of records Make will return during one execution cycle. The default value is 2.

Transaction type	Enum value
Assembly Build	_assemblyBuild
Assembly Unbuild	_assemblyUnbuild
Bin Transfer	_binTransfer
Bin Worksheet	_binWorksheet
Cash Refund	_cashRefund
Cash Sale	_cashSale
Check	_check
Credit Memo	_creditMemo
Custom Purchase	_customPurchase
Custom Sale	_customSale
Customer Deposit	_customerDeposit
Customer Payment	_customerPayment
Customer Refund	_customerRefund
Deposit	_deposit
Deposit Application	_depositApplication
Estimate	_estimate
Expense Report	_expenseReport
Inventory Adjustment	_inventoryAdjustment
Inventory Cost Revaluation	_inventoryCostRevaluation
Inventory Transfer	_inventoryTransfer
Invoice	_invoice
Item Fulfillment	_itemFulfillment
Item Receipt	_itemReceipt
Journal Entry	_journal
Opportunity	_opportunity
Paycheck Journal	_paycheckJournal
Purchase Order	_purchaseOrder
Return Authorization	_returnAuthorization
Sales Order	_salesOrder
Transfer Order	_transferOrder
Vendor Bill	_vendorBill
Vendor Credit	_vendorCredit
Vendor Payment	_vendorPayment
Vendor Return Authorization	_vendorReturnAuthorization
Work Order	_workOrder
Work Order Close	_workOrderClose
Work Order Completion	_workOrderCompletion
Work Order Issue	_workOrderIssue

Connection	Establish a connection to your NetSuite account.
Search Record Type	Select the record type and add filters to search the record.
Search Filter	Specify the filter conditions and operators. To search for sales transaction types, see the information below this table regarding how to set up the Search Filter.
Limit	Set the maximum number of records Make will return during one execution cycle. The default value is 10.
Entity Custom Fields	Select the fields to be listed for mapping or leave the field blank to list records for all the available entity custom fields.

Transaction type	Enum value
Assembly Build	_assemblyBuild
Assembly Unbuild	_assemblyUnbuild
Bin Transfer	_binTransfer
Bin Worksheet	_binWorksheet
Cash Refund	_cashRefund
Cash Sale	_cashSale
Check	_check
Credit Memo	_creditMemo
Custom Purchase	_customPurchase
Custom Sale	_customSale
Customer Deposit	_customerDeposit
Customer Payment	_customerPayment
Customer Refund	_customerRefund
Deposit	_deposit
Deposit Application	_depositApplication
Estimate	_estimate
Expense Report	_expenseReport
Inventory Adjustment	_inventoryAdjustment
Inventory Cost Revaluation	_inventoryCostRevaluation
Inventory Transfer	_inventoryTransfer
Invoice	_invoice
Item Fulfillment	_itemFulfillment
Item Receipt	_itemReceipt
Journal Entry	_journal
Opportunity	_opportunity
Paycheck Journal	_paycheckJournal
Purchase Order	_purchaseOrder
Return Authorization	_returnAuthorization
Sales Order	_salesOrder
Transfer Order	_transferOrder
Vendor Bill	_vendorBill
Vendor Credit	_vendorCredit
Vendor Payment	_vendorPayment
Vendor Return Authorization	_vendorReturnAuthorization
Work Order	_workOrder
Work Order Close	_workOrderClose
Work Order Completion	_workOrderCompletion
Work Order Issue	_workOrderIssue

Connection	Establish a connection to your NetSuite account.
Search Record Type	Select the record type and add filters to search the record.
Saved Search	Select the saved search that you want to use for filtering records.
Search Filter	Specify the filter conditions and operators. To search for sales transaction types, see the information below this table regarding how to set up the Search Filter.
Enable Custom Field Filter	Select whether to enable the custom field filter for additional filtering options.
Limit	Set the maximum number of records Make will return during one execution cycle. The default value is 10.

Transaction type	Enum value
Assembly Build	_assemblyBuild
Assembly Unbuild	_assemblyUnbuild
Bin Transfer	_binTransfer
Bin Worksheet	_binWorksheet
Cash Refund	_cashRefund
Cash Sale	_cashSale
Check	_check
Credit Memo	_creditMemo
Custom Purchase	_customPurchase
Custom Sale	_customSale
Customer Deposit	_customerDeposit
Customer Payment	_customerPayment
Customer Refund	_customerRefund
Deposit	_deposit
Deposit Application	_depositApplication
Estimate	_estimate
Expense Report	_expenseReport
Inventory Adjustment	_inventoryAdjustment
Inventory Cost Revaluation	_inventoryCostRevaluation
Inventory Transfer	_inventoryTransfer
Invoice	_invoice
Item Fulfillment	_itemFulfillment
Item Receipt	_itemReceipt
Journal Entry	_journal
Opportunity	_opportunity
Paycheck Journal	_paycheckJournal
Purchase Order	_purchaseOrder
Return Authorization	_returnAuthorization
Sales Order	_salesOrder
Transfer Order	_transferOrder
Vendor Bill	_vendorBill
Vendor Credit	_vendorCredit
Vendor Payment	_vendorPayment
Vendor Return Authorization	_vendorReturnAuthorization
Work Order	_workOrder
Work Order Close	_workOrderClose
Work Order Completion	_workOrderCompletion
Work Order Issue	_workOrderIssue

Connection	Establish a connection to your NetSuite account.
Action	Select the action you want to perform. For example, create a record and get an internal ID.
Record Type	Select the record type and enter the details of the record you want to create.
Entity Custom Fields	Select the custom fields you want to add to this record. Once you select the custom field, an option to enter or map a value will be provided.

Connection	Establish a connection to your NetSuite account.
Record Type	Select or map the record type of the details you want to retrieve.
Internal ID	Enter the Internal ID of the record whose details you want to retrieve. Ensure that in the Preference section, you have selected the Show Internal ID checkbox to display the Internal ID column in the records page. Internal_ID.png
External ID	Enter the External ID of the record whose details you want to retrieve.
Entity Custom Fields	Select the fields to be listed for mapping or leave this field blank to list all available entity custom fields.

Connection	Establish a connection to your NetSuite account.
Record Type	Select or map the record type of the record you want to delete.
Internal ID	Enter the Internal ID of the record you want to delete. Ensure that in the Preference section, you have selected the Show Internal ID checkbox to display the Internal ID column in the records page.
External ID	Enter the External ID of the record you want to delete.
Reason Code ID	Enter the Reason Code ID applicable to the record you want to delete. You can find the ID at NetSuite Setup > Accounting > Accounting Lists and filter by Transaction Deletion Reason to get the reason ID.
Reason Memo	Enter a memo with the reason to delete the record.

Connection	Establish a connection to your NetSuite account.
Custom Record Type	Select the custom record type and add filters to search for the custom records.
Limit	Set the maximum number of records Make will work with during one execution cycle. It must be a number between 1 and 3200. The default value is 10.
Offset	Enter the number of results to be skipped, it must be divisible by the page limit 100. Use this field with a repeater module only if you want to get more than 3200 results.

Connection	Establish a connection to your NetSuite account.
Custom Record Type	Select the custom record type details you want to retrieve.
Record IDs	Enter the internal IDs of the custom records you want to retrieve. Ensure that in the Preference section, you have selected the Show Internal ID checkbox to display the Internal ID column in the records page.

Connection	Establish a connection to your NetSuite account.
Custom Record Type	Select the custom record type and enter details for the record you want to create.

Connection	Establish a connection to your NetSuite account.
Custom Record Type	Select the custom record type of the details you want to retrieve.
ID	Enter either the internal or external ID of the custom record you want to retrieve details for. If using an external ID, add the prefix eid:. For example, eid:make-123. To use internal IDs, ensure that in the Preference section you have selected the Show Internal ID checkbox to display the Internal ID column in the records page.

Connection	Establish a connection to your NetSuite account.
Custom Record Type	Select the custom record type of the record you want to update and enter the details you want to update.
ID	Enter either the internal or external ID of the custom record you want to update. If using an external ID, add the prefix eid:. For example, eid:make-123. To use internal IDs, ensure that in the Preference section you have selected the Show Internal ID checkbox to display the Internal ID column in the records page. Internal_ID.png

Connection	Establish a connection to your NetSuite account.
Custom Record Type	Select the custom record type of the record you want to delete.
ID	Enter either the internal or external ID of the custom record you want to delete. If using an external ID, add the prefix eid:. For example, eid:make-123. To use internal IDs, ensure that in the Preference section you have selected the Show Internal ID checkbox to display the Internal ID column in the records page. Internal_ID.png

Connection	Establish a connection to your NetSuite account.
Upload By	Select or map the upload type: URL Binary Data
Folder	Either Interal ID or External ID must be provided. If both are provided, the Internal ID is used.
File Type	Select the type of file you want to upload.
Description	Enter a description for the file.
Is Online	Select if the file is accessible externally.
Is Private	Select if the file is visible only by you.

Connection	Establish a connection to your NetSuite account.
Internal ID	Enter the Internal ID of the file you want to download.
External ID	Enter the External ID of the file you want to download.

Connection	Establish a connection to your NetSuite account.
File	Either Internal ID or External ID must be provided. If both are provided, the Internal ID is used.
Record Type	Select the type of record to which you want to attach a file.
Internal ID	Enter the Internal ID of the file you want to attach.
External ID	Enter the External ID of the file you want to attach.

Connection	Establish a connection to your NetSuite account.
File	Either Internal ID or External ID must be provided. If both are provided, the Internal ID is used.
Record Type	Select the type of record from which you want to detach a file.
Internal ID	Enter the Internal ID of the record you want to detach.
External ID	Enter the External ID of the record you want to detach.


Connection	Establish a connection to your NetSuite account.
Action	Select the action you want to take: Create a folder: Internal ID Update a folder: Internal ID Create or update a folder: External ID
Description	Enter a description for the folder.
Folder Type	Select the type of folder.
Parent	Provide the Internal ID or External ID of the parent folder. If both are provided, the Internal ID is used.
Is Online	Select if you want this folder accessible externally.
Is Private	Select if you want the folder to be visible only by you.
Is Inactive	Select if you want to inactivate this folder.

Connection	Establish a connection to your NetSuite account.
Action	Select or map an action for the call. For example, Search.
Body	Enter the body content for your API call. For example, <platformMsgs:getAll><platformCore:record recordType="currency" /></platformMsgs:getAll>
Header	Enter the desired request headers. You don't have to add authorization headers; we've already added those for you.
SOAP Version	Enter a valid SOAP version to apply for the call. For example, NetSuitePort_2022_1.

Namespace	Target
platformCore	/xsd/platform/v2022_1_0/core.xsd
platformCoreTyp	/xsd/platform/v2022_1_0/coreTypes.xsd
platformMsgs	/xsd/platform/v2022_1_0/messages.xsd
platformCommon	/xsd/platform/v2022_1_0/common.xsd
platformCommonTyp	/xsd/platform/v2022_1_0/commonTypes.xsd
actSched	/xsd/activities/v2022_1_0/scheduling.xsd
actSchedTyp	/xsd/activities/v2022_1_0/schedulingTypes.xsd
demandPlanning	/xsd/transactions/v2022_1_0/demandPlanning.xsd
demandPlanningTyp	/xsd/transactions/v2022_1_0/demandPlanningTypes.xsd
docfileCab	/xsd/documents/v2022_1_0/fileCabinet.xsd
docfileCabTyp	/xsd/documents/v2022_1_0/fileCabinetTypes.xsd
generalComm	/xsd/general/v2022_1_0/communication.xsd
generalCommTyp	/xsd/general/v2022_1_0/communicationTypes.xsd
listAcct	/xsd/lists/v2022_1_0/accounting.xsd
listAcctTyp	/xsd/lists/v2022_1_0/accountingTypes.xsd
listEmp	/xsd/lists/v2022_1_0/employees.xsd
listEmpTyp	/xsd/lists/v2022_1_0/employeeTypes.xsd
listMkt	/xsd/lists/v2022_1_0/marketing.xsd
listMktTyp	/xsd/lists/v2022_1_0/marketingTypes.xsd
listRel	/xsd/lists/v2022_1_0/relationships.xsd
listRelTyp	/xsd/lists/v2022_1_0/relationshipTypes.xsd
listScm	/xsd/lists/v2022_1_0/supplyChain.xsd
listScmTyp	/xsd/lists/v2022_1_0/supplyChainTypes.xsd
listSupport	/xsd/lists/v2022_1_0/support.xsd
listSupportTyp	/xsd/lists/v2022_1_0/supportTypes.xsd
listSite	/xsd/lists/v2022_1_0/website.xsd
listSiteTyp	/xsd/lists/v2022_1_0/websiteTypes.xsd
setupCustom	/xsd/setup/v2022_1_0/customization.xsd
setupCustomTyp	/xsd/setup/v2022_1_0/customizationTypes.xsd
tranBank	/xsd/transactions/v2022_1_0/bank.xsd
tranBankTyp	/xsd/transactions/v2022_1_0/bankTypes.xsd
tranCust	/xsd/transactions/v2022_1_0/customers.xsd
tranCustTyp	/xsd/transactions/v2022_1_0/customerTypes.xsd
tranInvt	/xsd/transactions/v2022_1_0/inventory.xsd
tranInvtTyp	/xsd/transactions/v2022_1_0/inventoryTypes.xsd
tranEmp	/xsd/transactions/v2022_1_0/employees.xsd
tranEmpTyp	/xsd/transactions/v2022_1_0/employeeTypes.xsd
tranFin	/xsd/transactions/v2022_1_0/financial.xsd
tranFinTyp	/xsd/transactions/v2022_1_0/financialTypes.xsd
tranGeneral	/xsd/transactions/v2022_1_0/general.xsd
tranPurch	/xsd/transactions/v2022_1_0/purchases.xsd
tranPurchTyp	/xsd/transactions/v2022_1_0/purchaseTypes.xsd
tranSales	/xsd/transactions/v2022_1_0/sales.xsd
tranSalesTyp	/xsd/transactions/v2022_1_0/saleTypes.xsd

Connection	Establish a connection to your NetSuite account.
URL	Enter a path relative to https://{accountId}.suitetalk.api.netsuite.com/services/rest. For example, /record/v1/customer.
Method	Select the HTTP method you want to use: GET to retrieve information for an entry. POST to create a new entry. PUT to update/replace an existing entry. PATCH to make a partial entry update. DELETE to delete an entry. OPTIONS to identify allowed request methods.
Headers	You don't have to add authorization headers and content type as they are already added for you.
Query String	Enter the request query string.
Body	Enter the body content for your API call. It must be a valid JSON string.

Connection	Establish a connection to your NetSuite account.
Script ID	Enter the script record’s ID.
Deploy ID	Enter the deployment record’s ID
Method	Select the HTTP method you want to use: GET to retrieve information for an entry. POST to create a new entry. PUT to update/replace an existing entry. DELETE to delete an entry.
Header	You don't have to add authorization headers and content type as they are already added for you.
Query String	Enter the request query string.
Body	Enter the body content for your API call. It must be a valid JSON string.

Connection	Establish a connection to your NetSuite account.
Query	For more information on building a query, visit the NetSuite documentation.
Limit	The maximum number of results to be worked with during one execution cycle. The number must be between 1 and 3200.
Offset	The number of results to be skipped, it must be divisible by the page limit 100. Use this field with a repeater module only if you want to get more than 3200 results.

MuleSoft

Oracle Fusion Cloud ERP

NetSuite

Connect NetSuite to Make

Enable token-based authentication

Create Consumer Key and Consumer Secret Credentials

Create and Assign Roles

Establish the connection with NetSuite in Make

Standard Record

Watch Records

Watch Records (Saved Search)

Search Records

Search Records (Saved Search)

Create or Update a Record

Get a Record

Delete a Record

Custom Record

Search Custom Records

Bulk Get Custom Records (Advanced)

Create a Custom Record

Get a Custom Record

Update a Custom Record

Delete a Custom Record

Files and Folders

Upload a File

Download a File

Attach a File

Detach a File

Create or Update a Folder

Other

Make a SOAP API Call

Example of Use - Get Records from Saved Search on Custom Record

Example of Use - Get All Messages

Make a REST API Call

Example of Use - Get All Customers

Make a RESTlet API Call

Run a SuiteQL Query

Example of Use - Customer Information

NetSuite

Connect NetSuite to Make

Enable token-based authentication

Create Consumer Key and Consumer Secret Credentials

Create and Assign Roles

Establish the connection with NetSuite in Make

Standard Record

Watch Records

Watch Records (Saved Search)

Search Records

Search Records (Saved Search)

Create or Update a Record

Get a Record

Delete a Record

Custom Record

Search Custom Records

Bulk Get Custom Records (Advanced)

Create a Custom Record

Get a Custom Record

Update a Custom Record

﻿

Delete a Custom Record

Files and Folders

Upload a File

Download a File

Attach a File

Detach a File

Create or Update a Folder

Other

Make a SOAP API Call

Example of Use - Get Records from Saved Search on Custom Record

Example of Use - Get All Messages

Make a REST API Call

Example of Use - Get All Customers

Make a RESTlet API Call

Run a SuiteQL Query

Example of Use - Customer Information
